Tutorial 3.2: Evading ML-based IDS using GANs

Open notebook on:

Author: Christoph R. Landolt

As shown in Tutorial 1 and 2 have Machine Learning-based Intrusion Detection Systems (ML-IDS) significantly improved the detection of cyberattacks in modern networks. However, as defenders adopt ML models, adversaries have also begun leveraging machine learning, e.g. Generative Adversarial Networks (GANs), to craft adversarial network traffic that can evade these systems while maintaining the appearance of legitimate data.

This tutorial demonstrates how adversarial techniques can be used to evade a trained ML-based IDS using the CICIDS-2017 dataset, based on the approach presented in Zolbayar et al., “Evading Machine Learning-Based Network Intrusion Detection Systems with GANs,” 2021.

Tutorial Objectives

By the end of this tutorial, you will be able to:

• Understand how adversarial machine learning applies to cybersecurity and network intrusion detection.

• Implement a simple GAN-based adversarial attack to fool a pre-trained ML-based IDS.

• Discuss defensive strategies against adversarial attacks in IDS.

ML-Based IDS and Their Limitations

ML-based Intrusion Detection Systems (IDS) rely on classification (Tutorial 1) or anomaly detection (Tutorial 2) to separate benign from malicious network traffic. While powerful, these models have two central weaknesses that can be exploited by attackers.

1. Data Scarcity and Class Imbalance. Training datasets are often heavily skewed towards benign traffic, which impacts models in different ways. For supervised classifiers, the lack of labeled examples means they have no way to learn about “zero-day” attacks that were unknown when the data was collected. In contrast, anomaly detectors, while designed to find novelty, can still miss sophisticated attacks that are crafted to appear statistically similar to benign traffic.

2. Adversarial Vulnerability. Attackers can actively fool ML models by crafting malicious inputs that are designed to be misclassified as benign. This field of study is known as Adversarial Machine Learning. In the network domain, an adversary might slightly modify packet- or flow-level features (e.g., duration, byte/packet counts) so that malicious traffic appears statistically normal to a trained IDS. These manipulated inputs are called adversarial examples.

   Example: An attacker slightly changes packet counts or the average packet size of their traffic so that it falls within the “normal” range learned by the IDS, causing a misclassification.

   This is a critical weakness even for the anomaly-based models from Tutorial 2 (Isolation Forest, One-Class SVM, etc.). While these models strengthen detection compared to classic signature-based approaches, attackers can still probe and exploit their learned decision boundaries.

This raises a fundamental question:

How robust are ML-based intrusion detection systems to intelligent adversaries who deliberately craft network traffic to deceive them?

Defining Adversarial Examples

An adversarial example is an input to a machine learning model that has been intentionally modified in a minimal and domain-feasible way so the model makes an incorrect prediction.

Formally, let \(f:\mathbb{R}^n\to\mathbb{R}^m\) be a trained classifier and let \(\mathbf{x}\in\mathbb{R}^n\) be an input with true label \(y^\star\) and predicted label \(\hat y(\mathbf{x})=\arg\max_j f(\mathbf{x})_j\) (i.e., the class with the highest output score). An adversary seeks a perturbation \(\Delta\mathbf{x}\) that is small under some norm while ensuring the perturbed input remains valid for the domain and that the model predicts a different target class \(t\neq \hat y(\mathbf{x})\). A common targeted formulation is

\[\begin{split}\begin{align} \min_{\Delta\mathbf{x}}\quad & c\;\|\Delta\mathbf{x}\|_{p} + \mathcal{L}\big(f(\mathbf{x}+\Delta\mathbf{x}),\,t\big) \notag \\ \text{s.t.}\quad & \mathbf{x} + \Delta\mathbf{x} \in \mathcal{C} \notag \end{align}\end{split}\]

where \(\mathcal{C}\) denotes domain-specific validity constraints (e.g., integer packet counts, protocol-consistent headers, non-negativity), and \(\mathcal{L}\) is an attack loss. Common norms used to measure perturbation size include:

• \(\ell_0\): sparsity of modified features,

• \(\ell_2\): overall magnitude,

• \(\ell_\infty\): maximum per-feature change.

For untargeted attacks the loss \(\mathcal{L}\) is replaced or modified to encourage any label different from the original prediction.

In essence: an adversarial example is a malicious input disguised as normal by making small, carefully chosen modifications that exploit the model’s decision boundary.

Intuition

ML models, especially complex ones, learn decision surfaces where small, carefully chosen perturbations can move an input across the boundary. In networking, this translates to:

• slight changes in packet timing or sizes,

• minor tweaks to flow statistics,

• adding or modifying benign-looking header fields,

that can cause an IDS to label malicious traffic as benign, producing an evasion attack.

Types of Adversarial Attacks

Attacks are typically categorized by the level of knowledge the adversary has about the target model.

Attack Type	Knowledge Assumed by the Attacker	Description
White-box	Full access to model parameters, architecture, and gradients.	Attacker can compute exact perturbations to fool the model. Most powerful but least realistic.
Black-box	No internal model knowledge; can only query inputs and observe outputs.	Attacker approximates the target model by training a substitute, then crafts attacks against it. Highly practical.
Gray-box	Partial knowledge (e.g., model type or training data distribution).	A realistic scenario between the two extremes.

GAN-based attacks typically operate under a black-box threat model, where the attacker has no access to the internal parameters of the target IDS. Instead, they train a generator–discriminator framework that learns to mimic the IDS’s decision boundary. Once trained, the generator can craft adversarial traffic samples that mimic benign traffic yet successfully evade detection.

Generative Adversarial Networks (GANs)

Core Concept

Generative Adversarial Networks (GANs), introduced by Goodfellow et al. (2014), consist of two competing neural networks: a generator (G) and a discriminator (D). The generator’s goal is to create synthetic data, while the discriminator’s goal is to distinguish real data from the generator’s fakes. Through this adversarial process, both networks improve, with the generator learning to produce increasingly realistic samples that can fool the discriminator.

GANs are increasingly applied in adversarial intrusion detection research for two key reasons:

1. The adversarial training dynamic encourages the generator to produce plausible and realistic modifications to attack traffic, rather than just random noise.

2. Their proven success in creating powerful evasion attacks in the image domain has inspired the adaptation of GANs for network security.

Mathematical Framework

The training process is a two-player minimax game defined by the objective function:

\[\min_G \max_D V(D, G) = \mathbb{E}_{x \sim p_{\text{data}}(x)}[\log D(x)] + \mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))]\]

Let’s break this down:

• The Discriminator (D) wants to maximize this function. It does this by:

  1. Maximizing the first term, \(\mathbb{E}_{x \sim p_{\text{data}}(x)}[\log D(x)]\). This means it wants its output \(D(x)\) to be close to 1 (high probability) for real samples \(x\).

  2. Maximizing the second term, \(\mathbb{E}_{z \sim p_z(z)}[\log(1 - D(G(z)))]\). This means it wants its output \(D(G(z))\) to be close to 0 (low probability) for fake samples \(G(z)\).

• The Generator (G) wants to minimize this function by making the second term as small as possible. It tries to make \(D(G(z))\) close to 1, fooling the discriminator into thinking its fake samples are real.

Training continues until the generator produces samples that are so realistic that the discriminator is no better than random chance at telling them apart (i.e., \(D(x) \approx 0.5\) for all inputs). At this equilibrium, the generator has successfully learned the underlying distribution of the real data.

GAN-Based Adversarial Attacks for IDS

In the context of intrusion detection, GAN-based adversarial attacks generate malicious traffic designed to evade machine learning–based IDS models. Two major variants have been applied to this problem: IDSGAN and AdvGAN. Although both leverage the GAN framework, they differ fundamentally in how the generator alters input data and how they enforce realism or domain constraints.

IDSGAN

IDSGAN (Lin et al., 2018) was designed for the network intrusion detection domain to generate adversarial traffic that can evade a black-box target model. As illustrated in the diagram, the framework is a dynamic system involving three key components.

• Generator (G): Takes the mutable part of a malicious traffic sample (\(\vec{x_M}\)) and perturbs it to create new “crafted features” (\(\vec{x_C}\)). Its goal is to produce a full adversarial sample, \(\vec{x_A}\), that preserves the attack’s function while being misclassified as benign.

• Black-Box NIDS (B): This is the pre-trained, fixed target model. It acts as an “oracle,” providing classification labels for both benign traffic (\(\vec{x_B}\)) and adversarial traffic (\(\vec{x_A}\)). These labels serve as the ground truth for training the Discriminator.

• Discriminator (D): Serves as a differentiable proxy for the target NIDS. It learns to imitate the behavior of the Black-Box NIDS by taking traffic data (\(\vec{x_B}\), \(\vec{x_A}\)) and the corresponding predicted labels from the NIDS as input. By mimicking the target, it provides the necessary gradients to train the Generator.

Feature Partitioning

To maintain the validity of the attack, an original malicious traffic sample, \(\vec{x_{mal}}\), is separated into two vectors:

• \(\vec{x_I}\) Immutable Features: A vector of features essential to the attack’s success. These are passed through unmodified.

• \(\vec{x_M}\) Mutable Features: A vector of features that can be altered without breaking the attack’s core function. These are fed into the Generator.

The Generator’s output, \(\vec{x_C}\), is combined with \(\vec{x_I}\) to form the final adversarial sample: \(\vec{x_A} = \begin{bmatrix} \vec{x_I} \\ \vec{x_C} \end{bmatrix}\).

Objective Functions (Based on Wasserstein GAN)

The loss functions are designed to train the Discriminator to mimic the NIDS and the Generator to fool this mimic, using clearer notation for each traffic type.

\(\mathcal{L}_G\) Generator Loss

The Generator is trained to create adversarial samples, \(\vec{x_A}\), that the Discriminator classifies as ‘Normal’. Let \(G(\vec{x_{mal}})\) represent the full process of generating \(\vec{x_A}\) from an original malicious sample \(\vec{x_{mal}}\).

\[\mathcal{L}_G = \mathbb{E}_{\vec{x_{mal}}} [D(G(\vec{x_{mal}}))]\]

• The Generator’s goal is to minimize this loss. It adjusts its weights via the gradient-based training loop to produce adversarial traffic that receives a low score from the Discriminator \(D\).

\(\mathcal{L}_D\) Discriminator Loss

The Discriminator is trained to assign high scores to traffic the NIDS labels as ‘Attack’ (\(\vec{x_A}\)) and low scores to traffic the NIDS labels as ‘Normal’ (\(\vec{x_B}\)).

\[\mathcal{L}_D = \mathbb{E}_{\vec{x_B}} [D(\vec{x_B})] - \mathbb{E}_{\vec{x_A}} [D(\vec{x_A})]\]

• The Discriminator’s goal is to maximize this loss by learning to replicate the classification boundaries of the Black-Box NIDS.

AdvGAN

AdvGAN (Xiao et al., 2018), initially proposed for image classification, is a framework that learns to generate adversarial perturbations. The architecture, shown in the diagram, uses a Generator, a Discriminator, and a fixed Target model to achieve its goals.

Architectural Components

• Generator (G): The Generator learns to produce a subtle perturbation vector, \(\Delta \vec{x}\). This perturbation is then added to the original input vector \(\vec{x}\) to create the final adversarial example: \(\vec{x'} = \vec{x} + \Delta \vec{x}\).

• Discriminator (D): This is a standard GAN discriminator whose job is to enforce realism. It is trained to distinguish between a real example (\(\vec{x}\)) and the adversarial example (\(\vec{x'}\)). As shown in the diagram, its feedback results in the Realism Loss.

• Target Intrusion Detection System (IDS): This is the fixed, pre-trained victim model that the attack aims to fool. It is not updated during training. Its output is used to calculate the Adversarial Loss, which guides the Generator to create effective, misclassification-inducing perturbations.

Loss Function

As visualized in the diagram, AdvGAN’s generator loss is a combination of multiple components that are used to update the Generator via a feedback loop. The complete loss function creates effective yet realistic perturbations:

\[\mathcal{L}_G = \mathcal{L}_{\text{adv}} + \lambda \cdot \mathcal{L}_{\text{pert}} + \gamma \cdot \mathcal{L}_{\text{GAN}}\]

• \(\mathcal{L}_{\text{adv}}\) (Adversarial Loss): This loss comes from the Target IDS. It penalizes the Generator if the target model correctly classifies the adversarial example \(\vec{x'}\). This drives the generator to find a perturbation that causes a misclassification.

• \(\mathcal{L}_{\text{GAN}}\) (Realism Loss): This loss is provided by the Discriminator. It penalizes the Generator if the Discriminator can tell that the adversarial example \(\vec{x'}\) is “fake” (i.e., not from the original data distribution). This ensures the perturbation is realistic.

• \(\mathcal{L}_{\text{pert}}\) (Perturbation Penalty): Although not explicitly drawn as a separate box, this loss (typically an L2-norm, $ ||:nbsphinx-math:Delta `:nbsphinx-math:vec{x}`||_2 $) directly penalizes the size of the perturbation created by the Generator, ensuring the change is subtle.

When adapted to IDS tasks, this structure allows for precise attacks that can cause misclassification while ensuring the resulting traffic records remain valid and interpretable.

Comparison: IDSGAN vs. AdvGAN

The two approaches represent different philosophies in generating adversarial network traffic.

Aspect	IDSGAN	AdvGAN
Perturbation Strategy	Replaces a modifiable subset of features xN	Learns an additive perturbation Δx to apply to the full input x
Core Mechanism	Generates a full modified sample	Generates only the perturbation vector
Constraint Handling	Manual feature partitioning (pre-generation)	Post-generation masking and projection to enforce validity
Threat Model	Black-box (discriminator mimics IDS)	Semi white-box; adaptable to black-box via transferability
Strengths	Domain-aware; interpretable; network-specific	Highly effective; generalizable; perturbation-focused
Weaknesses	Depends heavily on feature engineering; can be brittle	Requires careful handling of domain constraints for non-image data

Enforcing Domain Constraints

Unlike continuous image data, network traffic data is structured and discrete. To craft realistic adversarial examples, we must enforce domain rules during generator training. These rules fall into two families:

1. Enforcement of constraints on intrinsic features (structural constraints).

2. Enforcement of constraints on valid ranges (attacker capability constraints).

1. Constraints on Intrinsic Features

Some features must never be changed because they encode the attack identity or categorical information that cannot be meaningfully perturbed:

• Attack-dependent invariants: Certain features are fixed for a given attack type and must remain constant.

• Protocol-dependent zeros and enums: A protocol implies that a subset of features is always zero or only takes a restricted set of values (e.g., TCP flags, services).

• One-hot / categorical features: One-hot encoded categorical fields must not be perturbed (or must be projected back to a valid one-hot vector).

To enforce these rules, we mask the generator’s output at every training iteration. Let the generator produce a perturbation vector

\[\vec{\Delta x} = (\Delta x_1, \ldots, \Delta x_n)^\top,\]

and let the binary mask vector be

\[\vec{m} = (m_1, \ldots, m_n)^\top,\qquad m_k \in\{0,1\},\]

where \(m_k=1\) indicates the \(k\)-th feature is allowed to change, and \(m_k=0\) indicates it must remain fixed.

The masked perturbation is the Hadamard product:

\[\vec{\Delta x}^{\,\text{masked}} = \vec{\Delta x}\circ\vec{m},\]

which elementwise yields \((\vec{\Delta x}\circ\vec{m})_k = m_k\,\Delta x_k\). Finally, the generator produces the candidate adversarial sample by applying the masked perturbation to the original instance \(x\):

\[x' = x + \vec{\Delta x}^{\,\text{masked}}.\]

Implementation notes:

• Build \(\vec{m}\) once from rules (attack type, protocol, one-hot indices). The effect is shown below:

index	1	2	3	4	5	…	n
\(\Delta x\)	\(\Delta x_1\)	\(\Delta x_2\)	\(\Delta x_3\)	\(\Delta x_4\)	\(\Delta x_5\)	…	\(\Delta x_n\)
\(m\)	1	0	1	0	1	…	1
masked	\(\Delta x_1\)	0	\(\Delta x_3\)	0	\(\Delta x_5\)	…	\(\Delta x_n\)

• For one-hot/categorical features, either set the corresponding \(m_k=0\) (do not perturb) or allow a special projection step that maps the perturbed vector back to the nearest valid category.

• Masking is applied inside the generator function or immediately after its output, before any clipping or classifier evaluation.

2. Constraints on Valid Ranges (Attacker Capability)

Even when a feature is mutable, its value must remain within a realistic, class-specific range. For each attack class (e.g., DoS, Probe, Benign) we compute per-feature valid intervals from the training data:

• For class DoS and feature \(x_i\): \([d_i^{\min}, d_i^{\max}]\)

• For class Probe: \([p_i^{\min}, p_i^{\max}]\)

• For class Benign: \([b_i^{\min}, b_i^{\max}]\)

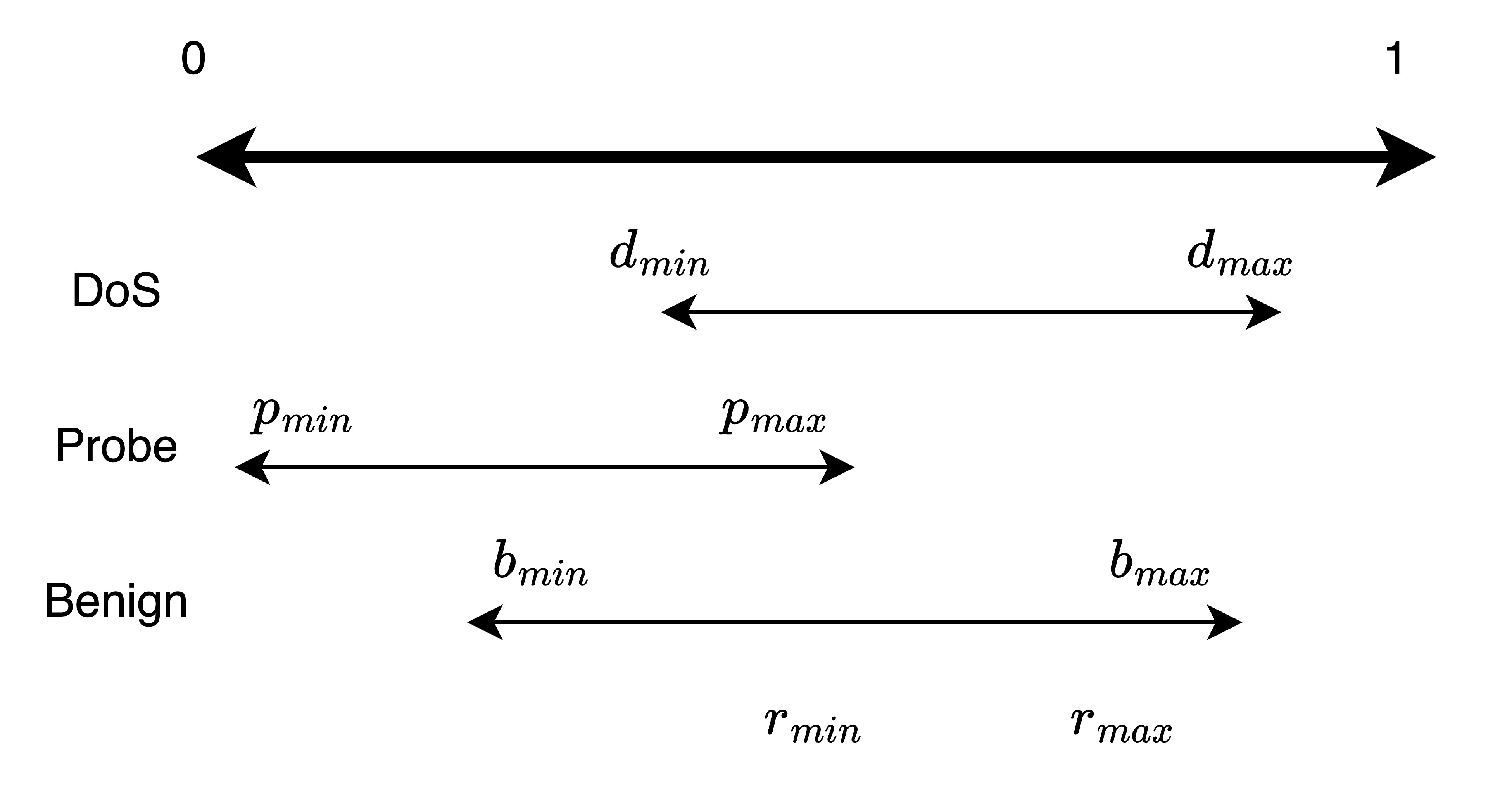

When applying a masked perturbation, we clip each feature to its class-specific valid range. Let \(R_i\) denote the valid interval for feature \(i\) for the current attack class; then the clipped adversarial value is:

\[x'_i = \operatorname{clip}\big(x_i + m_i \,\Delta x_i,\; R_i^{\min},\; R_i^{\max}\big),\]

where \(\operatorname{clip}(v,a,b) = \min\{\,\max\{v,a\},\,b\}\). In vector form, this is:

\[x' = \operatorname{clip}\big( x + (\vec{\Delta x}\circ\vec{m}),\; \vec{R}^{\min},\; \vec{R}^{\max} \big),\]

where the clip is applied elementwise and \(\vec{R}^{\min},\vec{R}^{\max}\) are the per-feature lower/upper bounds for the attack class.

Practical procedure per training iteration:

1. Generator computes raw perturbation \(\vec{\Delta x}\).

2. Apply mask: \(\vec{\Delta x}^{\,\text{masked}} = \vec{\Delta x}\circ\vec{m}\).

3. Form candidate sample: \(\tilde x = x + \vec{\Delta x}^{\,\text{masked}}\).

4. Clip to valid ranges per feature/class: \(x' = \operatorname{clip}(\tilde x,\; \vec{R}^{\min},\; \vec{R}^{\max})\).

5. If any categorical features were allowed to change, project them back to the nearest valid category / one-hot vector.

6. Feed \(x'\) to the discriminator and (if applicable) to the surrogate target classifier for adversarial loss.

Why both constraints are necessary:

• Masking prevents semantic corruption (keeps attack functionality intact and respects categorical structure).

• Clipping enforces attacker capability limits and prevents unrealistic values that would be trivially rejected by non-ML checks.

Notes on computing ranges:

• Compute per-class, per-feature minima and maxima from training data (or use percentiles like 1st/99th to reduce sensitivity to outliers).

• Optionally enforce integer rounding for count-like features after clipping.

• For features with known protocol rules (flags, port ranges), apply rule-based projection rather than raw data-driven clipping.

Key Implications and Recommended Defenses

The success of these GAN-based attacks reveals several critical insights about ML-based security:

• GAN-generated adversarial samples can severely degrade IDS detection accuracy.

• Such attacks often transfer across different models, confirming their black-box evasion potential.

• The success of these methods highlights the fragility of data-driven IDS boundaries, which often rely on non-causal statistical correlations rather than a true understanding of threats.

• Under adaptive threats, even IDS models with high static accuracy can fail catastrophically.

This underscores the urgent need for more robust defense strategies, including:

• Adversarial Training: Augmenting training data with generated adversarial examples to make models more resilient.

• Model Ensembles: Combining diverse models to create a more complex and harder-to-evade decision boundary.

• Input Sanitization: Pre-processing pipelines to detect and reject or normalize anomalous-looking inputs before they reach the model.

• Causal and Invariant Feature Engineering: Designing features that are causally linked to malicious activity and invariant to the simple perturbations used in evasion attacks.

Implementation: Evading an IDS with GANs

In this section, we will implement the concepts discussed above. The process is broken down into four main steps:

1. Load and Prepare Data: We will load the CICIDS-2017 dataset and prepare it for our models.

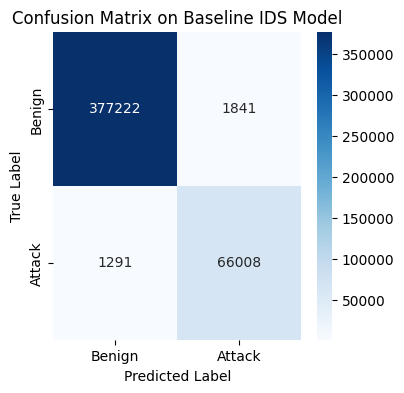

2. Train Target IDS Model: We will train a standard MLP classifier to act as our victim IDS.

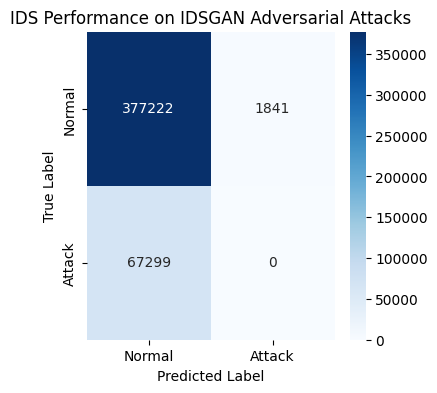

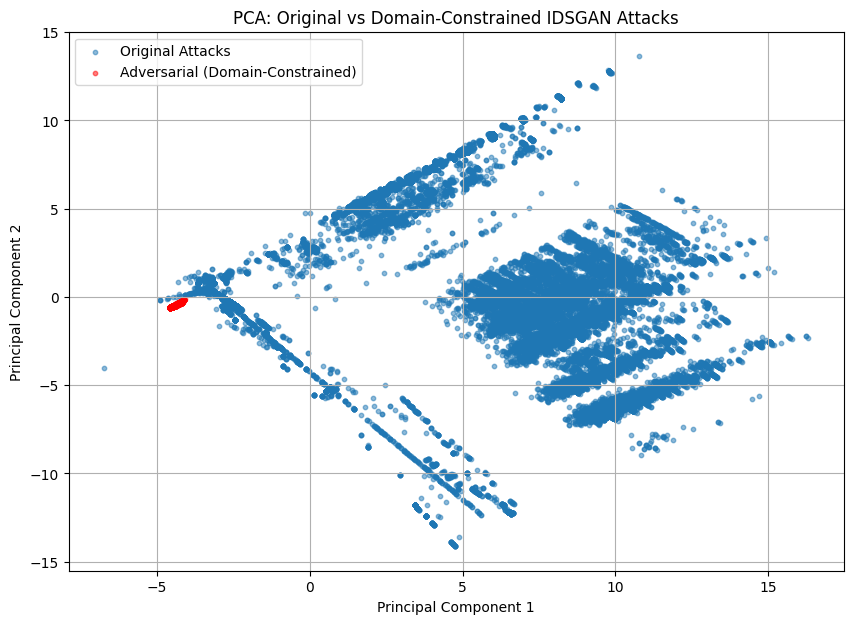

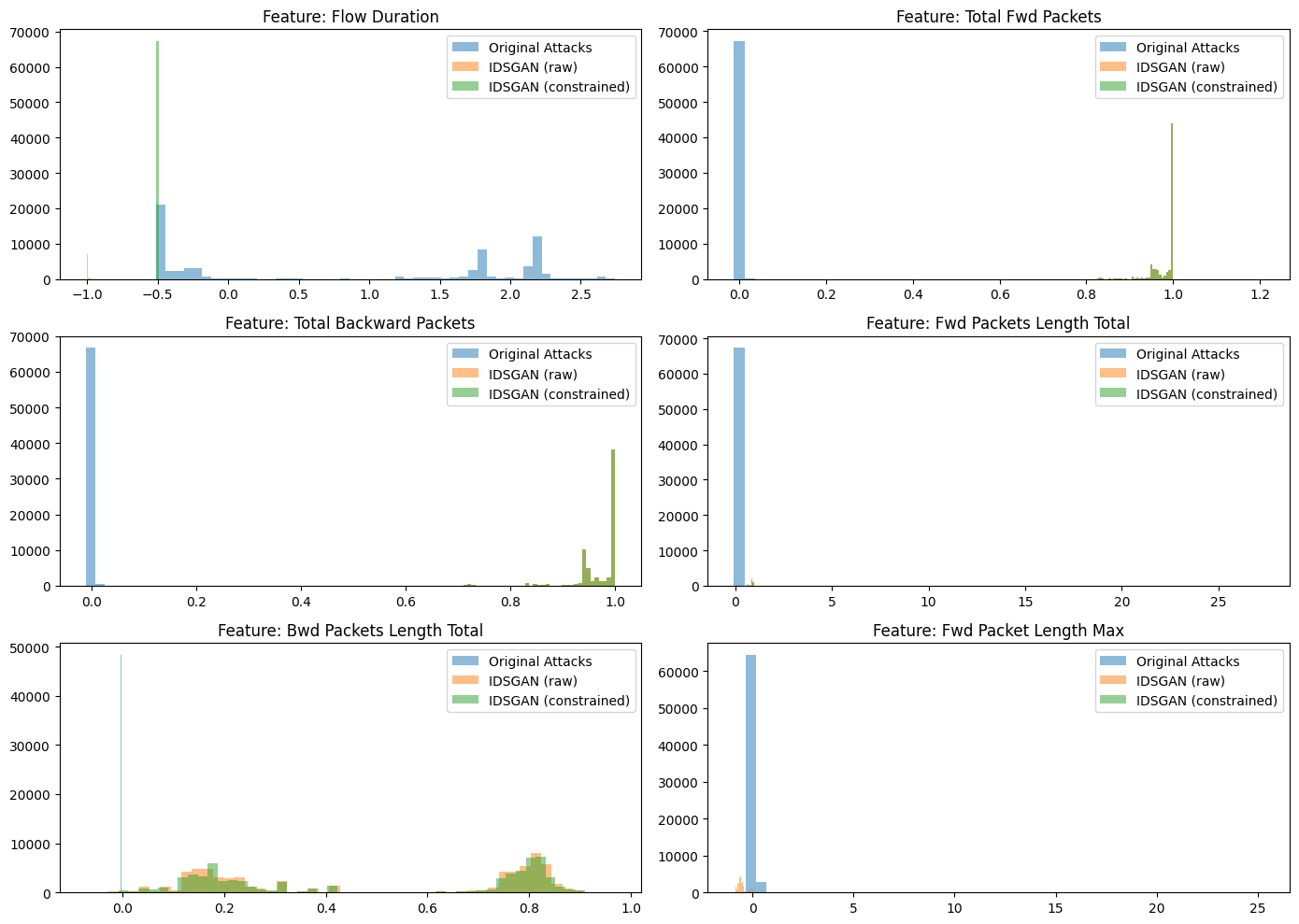

3. Train and Evaluate IDSGAN: We will build and train an IDSGAN to conduct a black-box attack against our target IDS.

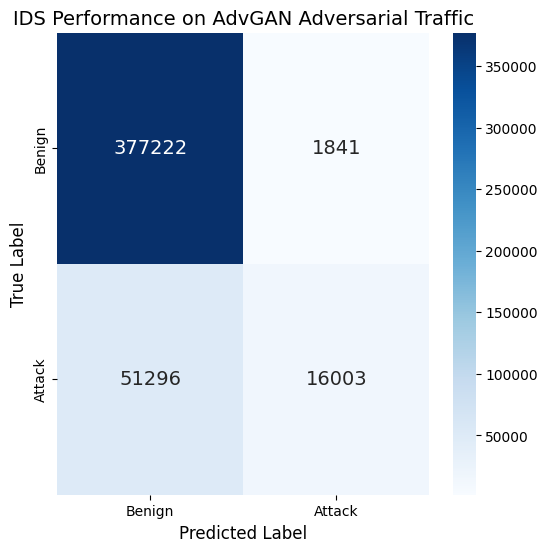

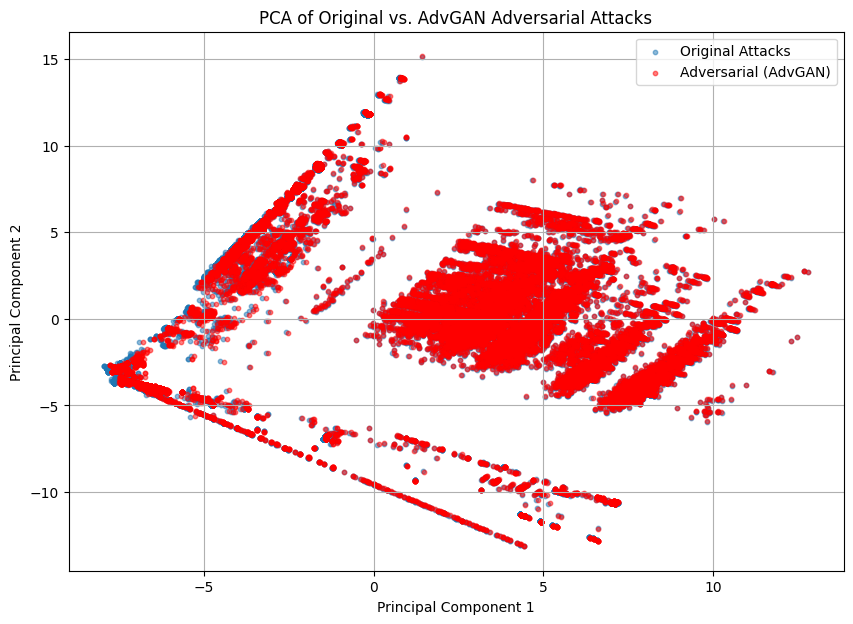

4. Train and Evaluate AdvGAN: We will then build and train an AdvGAN, which uses a different adversarial strategy, to attack the same IDS.

First, let’s start with the necessary imports and setting up our environment to use a GPU if available.

# Import the required libraries
import os
import pandas as pd
import numpy as np
from glob import glob
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from sklearn.metrics import classification_report, accuracy_score, confusion_matrix
import matplotlib.pyplot as plt
import seaborn as sns

# PyTorch Imports
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import TensorDataset, DataLoader


# Configure Device (GPU or CPU)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")

Using device: cpu

Step 1: Load and Explore the CICIDS-2017 Dataset

For this tutorial, we now switch from the older KDDCUP99 dataset to the more recent and realistic CICIDS-2017 dataset, since KDDCUP99 does not reflect modern protocols, traffic patterns, or attack behaviors. CICIDS-2017 provides realistic traffic, diverse contemporary attacks, and rich flow-level features suitable for current IDS/IPS research.

CICIDS-2017 Overview:

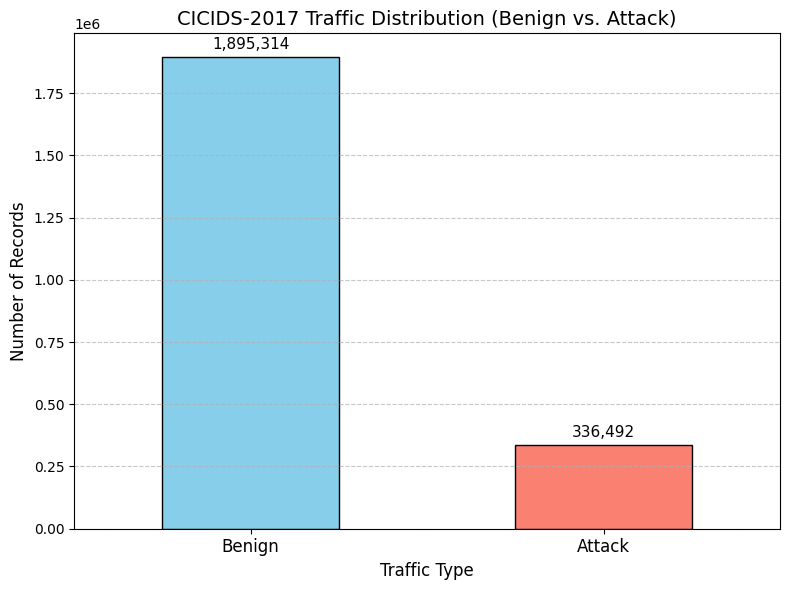

The dataset contains 5 days of network traffic (PCAP + labeled flows) including benign activity and attacks such as Brute Force, DoS/DDoS, Web Attacks, Heartbleed, Infiltration, and Botnet. Traffic is generated by 25 realistic user profiles across HTTP, HTTPS, FTP, SSH, and email protocols. More than 80 flow features are extracted using CICFlowMeter, and all samples are fully labeled for ML/DL tasks.

In this step, we will:

• Download the dataset from Kaggle (if not already available)

• Load Parquet files covering multiple attack types

• Clean, merge, and prepare the final binary classification dataset (Benign vs Attack)

# Dataset parameters
FILE = "cicids2017.zip"
DIR = "cicids2017"
URL = "https://www.kaggle.com/api/v1/datasets/download/dhoogla/cicids2017"

# Download if not exists
if not os.path.isfile(FILE):
    print(f"📥 Downloading {FILE} from Kaggle...")
    !curl -L -o {FILE} {URL}
else:
    print(f"✅ {FILE} already exists, skipping download.")

# Unzip if not exists
if not os.path.isdir(DIR):
    print(f"📦 Unzipping {FILE}...")
    !unzip -q {FILE} -d {DIR}
else:
    print(f"✅ {DIR} already exists, skipping unzip.")

✅ cicids2017.zip already exists, skipping download.
✅ cicids2017 already exists, skipping unzip.

Load and Merge Data Files: Load the CICIDS2017 parquet files by attack category and combine them into a single DataFrame.

# Display available files (from local directory)
DATA_DIR = "./cicids2017" # Path to the unzipped CICIDS-2017 data directory

for dirname, _, filenames in os.walk(DATA_DIR):
    for filename in filenames:
        print(os.path.join(dirname, filename))

# Load Parquet data files by attack type (local paths)
df_data_1 = pd.read_parquet(os.path.join(DATA_DIR, 'Benign-Monday-no-metadata.parquet'))
df_data_2 = pd.read_parquet(os.path.join(DATA_DIR, 'Bruteforce-Tuesday-no-metadata.parquet'))
df_data_3 = pd.read_parquet(os.path.join(DATA_DIR, 'Portscan-Friday-no-metadata.parquet'))
df_data_4 = pd.read_parquet(os.path.join(DATA_DIR, 'WebAttacks-Thursday-no-metadata.parquet'))
df_data_5 = pd.read_parquet(os.path.join(DATA_DIR, 'DoS-Wednesday-no-metadata.parquet'))
df_data_6 = pd.read_parquet(os.path.join(DATA_DIR, 'DDoS-Friday-no-metadata.parquet'))
df_data_7 = pd.read_parquet(os.path.join(DATA_DIR, 'Infiltration-Thursday-no-metadata.parquet'))
df_data_8 = pd.read_parquet(os.path.join(DATA_DIR, 'Botnet-Friday-no-metadata.parquet'))

# Concatenate all data into a single DataFrame
df_data = pd.concat([
    df_data_1, df_data_2, df_data_3, df_data_4,
    df_data_5, df_data_6, df_data_7, df_data_8
], axis=0, ignore_index=True)

print("✅ Combined dataset shape:", df_data.shape)
df_data.head()

./cicids2017/DDoS-Friday-no-metadata.parquet
./cicids2017/Bruteforce-Tuesday-no-metadata.parquet
./cicids2017/Botnet-Friday-no-metadata.parquet
./cicids2017/DoS-Wednesday-no-metadata.parquet
./cicids2017/Benign-Monday-no-metadata.parquet
./cicids2017/Infiltration-Thursday-no-metadata.parquet
./cicids2017/Portscan-Friday-no-metadata.parquet
./cicids2017/WebAttacks-Thursday-no-metadata.parquet
✅ Combined dataset shape: (2313810, 78)

	Protocol	Flow Duration	Total Fwd Packets	Total Backward Packets	Fwd Packets Length Total	Bwd Packets Length Total	Fwd Packet Length Max	Fwd Packet Length Min	Fwd Packet Length Mean	Fwd Packet Length Std	...	Fwd Seg Size Min	Active Mean	Active Std	Active Max	Active Min	Idle Mean	Idle Std	Idle Max	Idle Min	Label
0	6	4	2	0	12	0	6	6	6.00000	0.000000	...	20	0.0	0.0	0	0	0.0	0.0	0	0	Benign
1	6	1	2	0	12	0	6	6	6.00000	0.000000	...	20	0.0	0.0	0	0	0.0	0.0	0	0	Benign
2	6	3	2	0	12	0	6	6	6.00000	0.000000	...	20	0.0	0.0	0	0	0.0	0.0	0	0	Benign
3	6	1	2	0	12	0	6	6	6.00000	0.000000	...	20	0.0	0.0	0	0	0.0	0.0	0	0	Benign
4	6	609	7	4	484	414	233	0	69.14286	111.967896	...	20	0.0	0.0	0	0	0.0	0.0	0	0	Benign

5 rows × 78 columns

Data Cleaning and Preprocessing: Handle missing values, infinite values, and duplicates.

# Select only numeric columns for model input
df_numeric = df_data.select_dtypes(include=[np.number])

# Identify infinite values
infinity_counts = np.isinf(df_numeric).sum()
print("♾️ Infinite value counts per column:\n", infinity_counts[infinity_counts > 0])

# Replace infinities with NaN and drop missing values
df_numeric = df_numeric.replace([np.inf, -np.inf], np.nan)
df_numeric = df_numeric.dropna()

# Drop duplicate rows
duplicates = df_data.duplicated().sum()
print(f"🧹 Found and removing {duplicates} duplicate rows...")
df_data = df_data.drop_duplicates()

print("✅ Cleaned dataset shape:", df_data.shape)

♾️ Infinite value counts per column:
 Series([], dtype: int64)
🧹 Found and removing 82004 duplicate rows...
✅ Cleaned dataset shape: (2231806, 78)

Prepare Features and Labels: Convert multi-class attack labels into binary labels (0 = Benign, 1 = Attack).

# Separate features and labels
X = df_data.copy()
X = X.drop(columns='Label')
y = df_data["Label"].copy()

# Binary encode labels: 0 = Benign, 1 = Attack
y_b = y.map({'Benign': 0}).fillna(1).astype(int).rename('Label')

# Create final binary-labeled DataFrame
df_binary = X.copy()
df_binary['Label'] = y_b

# Count the occurrences of each class (0 for Benign, 1 for Attack)
label_counts = df_binary['Label'].value_counts()

# For a more readable plot, we'll map the numeric labels back to their names
label_counts.rename(index={0: 'Benign', 1: 'Attack'}, inplace=True)

# Create the bar plot
plt.figure(figsize=(8, 6)) # Create a figure to ensure the plot size is controlled
ax = label_counts.plot(
    kind='bar',
    color=['skyblue', 'salmon'], # Assign colors to the bars
    edgecolor='black'
)

# Customize the plot for clarity
plt.title("CICIDS-2017 Traffic Distribution (Benign vs. Attack)", fontsize=14)
plt.xticks(rotation=0, fontsize=12) # Keep the x-axis labels horizontal
plt.xlabel("Traffic Type", fontsize=12)
plt.ylabel("Number of Records", fontsize=12)
plt.grid(axis='y', linestyle='--', alpha=0.7) # Add a horizontal grid for readability

# Add text labels on top of each bar
for p in ax.patches:
    ax.annotate(f'{int(p.get_height()):,}',
                (p.get_x() + p.get_width() / 2., p.get_height()),
                ha='center', va='center',
                xytext=(0, 9),
                textcoords='offset points',
                fontsize=11)

plt.tight_layout() # Adjust layout to prevent labels from overlapping
plt.show()

Feature Scaling and Train-Test Split: Normalize features and prepare for model training and evaluation.

# Separate features and target
X = df_binary.drop(columns=['Label'])
y = df_binary['Label']

# Store feature names before scaling
feature_names = X.columns.tolist()

# Scale features
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

# Train-test split (80/20)
X_train, X_test, y_train, y_test = train_test_split(
    X_scaled, y, test_size=0.2, random_state=42, stratify=y
)

print("✅ Training samples:", len(X_train))
print("✅ Testing samples:", len(X_test))
print("📊 Attack ratio:", y.mean())

✅ Training samples: 1785444
✅ Testing samples: 446362
📊 Attack ratio: 0.1507711691786831

Notes:

• CICIDS-2017 provides realistic network flow features (e.g., duration, packet length, byte count, flow rate).

• We standardize all numeric features since GANs and neural networks require normalized inputs for stable training.

Step 2: Train the Target IDS Model

Next, we will use the KDDNet PyTorch model from Tutorial 1 - Getting Started 4. This model will serve as our target IDS that we will attempt to evade.

2.1 Define the KDDNet Model Architecture

# Define the Neural Network model (We use the same Network as for the KDDCup99 dataset in Tutorial 1)
class KDDNet(nn.Module):
    def __init__(self, input_dim):
        super(KDDNet, self).__init__()
        self.model = nn.Sequential(
            # Input Layer
            nn.Linear(input_dim, 128), nn.Tanh(), nn.Dropout(0.3),
            # Hidden Layer
            nn.Linear(128, 64), nn.Tanh(), nn.Dropout(0.3),
            # Classification Layer
            nn.Linear(64, 1), nn.Sigmoid()
        )
    def forward(self, x):
        return self.model(x)

2.2 Prepare DataLoaders for Training

# Dimensionality of input layer
input_dim = X_train.shape[1]

# Prepare DataLoader for training
train_dataset = TensorDataset(torch.tensor(X_train, dtype=torch.float32), torch.tensor(y_train, dtype=torch.float32).unsqueeze(1))
train_loader = DataLoader(train_dataset, batch_size=256, shuffle=True)

2.3 Train the Target IDS Model

# Initialize model, loss function, and optimizer
target_ids_pytorch = KDDNet(input_dim).to(device)
criterion = nn.BCELoss()
optimizer = optim.Adam(target_ids_pytorch.parameters(), lr=0.001)

# Train the model
print("Training the Target IDS Model (KDDNet)...")
n_epochs = 10 # Train for a few epochs for demonstration
for epoch in range(n_epochs):
    target_ids_pytorch.train()
    for X_batch, y_batch in train_loader:
        X_batch, y_batch = X_batch.to(device), y_batch.to(device)
        optimizer.zero_grad()
        outputs = target_ids_pytorch(X_batch)
        loss = criterion(outputs, y_batch)
        loss.backward()
        optimizer.step()
    print(f"Epoch {epoch+1}/{n_epochs}, Loss: {loss.item():.4f}")

Training the Target IDS Model (KDDNet)...
Epoch 1/10, Loss: 0.0734
Epoch 2/10, Loss: 0.0169
Epoch 3/10, Loss: 0.0319
Epoch 4/10, Loss: 0.0868
Epoch 5/10, Loss: 0.0094
Epoch 6/10, Loss: 0.0231
Epoch 7/10, Loss: 0.0060
Epoch 8/10, Loss: 0.0814
Epoch 9/10, Loss: 0.0299
Epoch 10/10, Loss: 0.0062

2.4 Evaluate the Baseline IDS Performance

# Evaluate the baseline IDS model
print("Baseline IDS Performance:")
target_ids_pytorch.eval()
with torch.no_grad():
    X_test_tensor = torch.tensor(X_test, dtype=torch.float32).to(device)
    y_test_tensor = torch.tensor(y_test.values, dtype=torch.float32).unsqueeze(1)
    y_pred_probs = target_ids_pytorch(X_test_tensor)
    y_pred_baseline = (y_pred_probs.squeeze() > 0.5).cpu().numpy()

# Confusion Matrix and Classification Report
cm = confusion_matrix(y_test, y_pred_baseline)
print("\nClassification Report:\n", classification_report(y_test, y_pred_baseline, target_names=['Benign', 'Attack']))

# Plot Confusion Matrix
plt.figure(figsize=(4,4))
sns.heatmap(cm, annot=True, fmt='d', cmap='Blues', xticklabels=['Benign', 'Attack'], yticklabels=['Benign', 'Attack'])
plt.xlabel('Predicted Label')
plt.ylabel('True Label')
plt.title('Confusion Matrix on Baseline IDS Model')
plt.show()

Baseline IDS Performance:

Classification Report:
               precision    recall  f1-score   support

      Benign       1.00      1.00      1.00    379063
      Attack       0.97      0.98      0.98     67299

    accuracy                           0.99    446362
   macro avg       0.98      0.99      0.99    446362
weighted avg       0.99      0.99      0.99    446362

Step 3: Train and Evaluate IDSGAN

Now we implement our first attack using IDSGAN. IDSGAN operates in a black-box setting where it can only query the target model. Its discriminator learns to be a proxy for the target IDS, providing gradients to the generator.

Step 3.1: Define Feature Mask and DataLoaders

We first define which features are “immutable” and create PyTorch DataLoaders for training.

# Define immutable features that the GAN should not change
immutable_features_names = [
    'Protocol', 'Fwd PSH Flags', 'Fwd URG Flags', 'Bwd PSH Flags', 'Bwd URG Flags',
    'FIN Flag Count', 'SYN Flag Count', 'RST Flag Count', 'PSH Flag Count',
    'ACK Flag Count', 'URG Flag Count', 'CWE Flag Count', 'ECE Flag Count'
]

# Create a binary mask: 1 for mutable, 0 for immutable
mask = np.ones(len(feature_names))
immutable_indices = [feature_names.index(f) for f in immutable_features_names if f in feature_names]
mask[immutable_indices] = 0
mask_tensor = torch.tensor(mask, dtype=torch.float32, device=device)

# Separate Benign and Malicious training samples for GAN training
X_train_malicious = X_train[y_train == 1]
X_train_benign = X_train[y_train == 0]

# Prepare PyTorch data for GAN training
malicious_dataset = TensorDataset(torch.tensor(X_train_malicious, dtype=torch.float32))
benign_dataset = TensorDataset(torch.tensor(X_train_benign, dtype=torch.float32))

# Prepare DataLoaders for GAN training
malicious_loader = DataLoader(malicious_dataset, batch_size=512, shuffle=True)
benign_loader = DataLoader(benign_dataset, batch_size=512, shuffle=True)

# Dimensionality of input layer of Generator
input_dim = X_train.shape[1]

Step 3.2: Define IDSGAN Models

In this step, we define the core neural network architectures for our IDSGAN: the Generator and the Discriminator. Both are implemented as simple Multi-Layer Perceptrons (MLPs).

The Generator (IDSGAN_Generator): The Generator’s job is to create realistic adversarial attacks. It takes a real malicious sample and modifies it slightly, aiming to fool an IDS.

• Architecture: It is an MLP with two hidden layers.

• Masking: After generating a new sample, it uses a mask to perform a critical step: the original values of the immutable features (e.g., source IP) are restored, while the mutable features (e.g., packet size) are kept from the generated sample. This ensures the adversarial attack remains plausible.

The Discriminator (IDSGAN_Discriminator): The Discriminator is a standard MLP binary classifier. It is trained to distinguish between two types of data:

1. Real, benign traffic samples.

2. The fake, adversarial samples created by the Generator.

# Define the GAN Generator and Discriminator
class IDSGAN_Generator(nn.Module):
    def __init__(self, input_dim):
        super().__init__()
        self.model = nn.Sequential(
            nn.Linear(input_dim, 128), nn.ReLU(),
            nn.Linear(128, 128), nn.ReLU(),
            nn.Linear(128, input_dim), nn.Tanh()
        )
    def forward(self, x, mask):
        generated_features = self.model(x)
        # Combine original immutable features with generated mutable features
        adversarial_sample = x * (1 - mask) + generated_features * mask
        return adversarial_sample

class IDSGAN_Discriminator(nn.Module):
    def __init__(self, input_dim):
        super().__init__()
        self.model = nn.Sequential(
            nn.Linear(input_dim, 128), nn.ReLU(),
            nn.Linear(128, 1), nn.Sigmoid()
        )
    def forward(self, x):
        return self.model(x)

Step 3.3: Train IDSGAN

The training process is divided into two main parts for each batch of data:

1. Train the Discriminator (The Proxy Model)

   The Discriminator’s goal is not to distinguish “real vs. fake” in the classic GAN sense. Instead, it’s trained to be a proxy that learns to replicate the decisions of the real, black-box IDS.

   1. The Generator creates a batch of adversarial samples from malicious inputs. We use .detach() to prevent gradients from flowing back into the Generator during the Discriminator’s training step.

   2. A combined batch is formed, containing both real benign samples and the newly created adversarial samples.

   3. The Black-Box Step: This combined batch is passed to the real target_ids_pytorch model. We get its predictions (labels) for each sample. These labels serve as the “ground truth” for our proxy Discriminator.

   4. The Discriminator is then trained on this batch, with its loss calculated based on how well its predictions match the labels from the real IDS.

2. Train the Generator

   The Generator’s goal is to produce adversarial samples that can successfully fool the real IDS. It achieves this by learning to fool the proxy Discriminator.

   1. The Generator creates a new batch of adversarial samples.

   2. The Fooling Step: These samples are passed to the Discriminator. The Generator wants the Discriminator to classify these malicious samples as benign (i.e., output a 1). Therefore, the Generator’s loss is calculated by comparing the Discriminator’s output against a target tensor of all ones.

# Instantiate Generator and Discriminator
generator_idsgan = IDSGAN_Generator(input_dim).to(device)
discriminator_idsgan = IDSGAN_Discriminator(input_dim).to(device)

# Initialize optimizers and loss function for GAN
opt_g_idsgan = optim.Adam(generator_idsgan.parameters(), lr=0.001)
opt_d_idsgan = optim.Adam(discriminator_idsgan.parameters(), lr=0.001)

# Training loop for IDSGAN
print("Training IDSGAN...")
for epoch in range(10):
    # Iterate over paired benign/malicious batches
    for (malicious_batch,), (benign_batch,) in zip(malicious_loader, benign_loader):
        malicious_batch, benign_batch = malicious_batch.to(device), benign_batch.to(device)

        # Train Discriminator
        opt_d_idsgan.zero_grad()
        # Generate adversarial samples (detached so gradients of the discriminator do not affect the generator)
        adv_samples = generator_idsgan(malicious_batch, mask_tensor).detach()
        # Combine benign and adversarial samples for querying the target IDS
        query_batch = torch.cat([benign_batch, adv_samples])

        # BLACK-BOX STEP: Get labels from the real Target IDS
        target_ids_pytorch.eval()
        with torch.no_grad():
            ids_probs = target_ids_pytorch(query_batch)
            ids_labels_for_D = (ids_probs > 0.5).float() # Convert probabilities to binary labels

        # Train Discriminator to mimic the Target IDS
        d_outputs = discriminator_idsgan(query_batch)
        # Use BCELoss to train the discriminator
        d_loss = criterion(d_outputs, ids_labels_for_D)
        d_loss.backward()
        opt_d_idsgan.step()

        # Train Generator
        opt_g_idsgan.zero_grad()
        # Generate adversarial samples for generator update
        adv_samples_for_g = generator_idsgan(malicious_batch, mask_tensor)
        # Get discriminator outputs for these adversarial samples
        g_outputs = discriminator_idsgan(adv_samples_for_g)
        # Use BCELoss between discriminator outputs and target labels of 0 (to fool the IDS)
        g_loss = criterion(g_outputs, torch.zeros_like(g_outputs))
        g_loss.backward()
        opt_g_idsgan.step()

    print(f"Epoch {epoch+1}: D Loss={d_loss.item():.4f}, G Loss={g_loss.item():.4f}")

Training IDSGAN...
Epoch 1: D Loss=0.0212, G Loss=0.0000
Epoch 2: D Loss=0.0056, G Loss=0.0000
Epoch 3: D Loss=0.0070, G Loss=0.0000
Epoch 4: D Loss=0.0105, G Loss=0.0000
Epoch 5: D Loss=0.0071, G Loss=0.0000
Epoch 6: D Loss=0.0130, G Loss=0.0000
Epoch 7: D Loss=0.0061, G Loss=0.0000
Epoch 8: D Loss=0.0083, G Loss=0.0000
Epoch 9: D Loss=0.0097, G Loss=0.0000
Epoch 10: D Loss=0.0112, G Loss=0.0000

Notes:

• The output shows the progression of the losses over 10 epochs. We can see the training stabilizes, indicating the models are learning.

• The code above uses torch.zeros_like(g_outputs) as the target for the generator loss. In many GAN implementations, the goal is to train the generator to produce samples that the discriminator classifies as “real” (label 1). Using a target of 1 often provides stronger gradients. However, different loss formulations exist, and the current setup still encourages the generator to change the discriminator’s output away from the “adversarial” class.

Step 3.4: Evaluate IDSGAN Evasion

Now that the IDSGAN is trained, it’s time for the crucial test: can our Generator create malicious samples that successfully evade the target IDS? This section evaluates the effectiveness of our black-box attack.

The evaluation process is broken down into two main parts:

• Measuring Evasion: We generate adversarial versions of all malicious test samples and directly measure how many of them the IDS fails to detect.

• Overall Performance Impact: We create a new “hybrid” test set, combining original benign traffic with our new adversarial attacks, to get a holistic view of the IDS’s performance in a more realistic scenario.

# Evaluate the IDS model on adversarial samples generated by IDSGAN
print("\n📊 IDSGAN Evasion Results:")
generator_idsgan.eval()

# Generate adversarial samples for the test set
X_test_malicious_np = X_test[y_test == 1]
X_test_malicious_tensor = torch.tensor(X_test_malicious_np, dtype=torch.float32).to(device)

# Generate adversarial samples using the trained generator and the Target IDS
with torch.no_grad():
    # Generator creates adversarial samples
    adv_samples_idsgan_tensor = generator_idsgan(X_test_malicious_tensor, mask_tensor)
    adv_samples_idsgan = adv_samples_idsgan_tensor.cpu().numpy()

    # Target IDS makes predictions on the adversarial samples
    adv_preds_idsgan_probs = target_ids_pytorch(adv_samples_idsgan_tensor)
    adv_preds_idsgan = (adv_preds_idsgan_probs.squeeze() > 0.5).cpu().numpy()

# Calculate detection rates
det_rate_orig = accuracy_score(y_test[y_test==1], y_pred_baseline[y_test==1])
det_rate_adv_idsgan = np.mean(adv_preds_idsgan == 1)

print(f"Detection Rate on Original Attacks: {det_rate_orig:.2%}")
print(f"Detection Rate on IDSGAN Adversarial Attacks: {det_rate_adv_idsgan:.2%}")


# Create a hybrid test set for the confusion matrix evaluation
X_test_benign_np = X_test[y_test == 0]

# Stack the benign samples and the new adversarial attack samples
X_test_hybrid = np.vstack([X_test_benign_np, adv_samples_idsgan])

# Create the corresponding true labels for this hybrid set
# The first part is benign (0), the second part is attack (1)
y_test_hybrid_true = np.concatenate([
    np.zeros(len(X_test_benign_np)),
    np.ones(len(adv_samples_idsgan))
])

# Make predictions on the new hybrid test set using the Target IDS
target_ids_pytorch.eval()
with torch.no_grad():
    X_test_hybrid_tensor = torch.tensor(X_test_hybrid, dtype=torch.float32).to(device)
    hybrid_preds_probs = target_ids_pytorch(X_test_hybrid_tensor)
    hybrid_preds_labels = (hybrid_preds_probs.squeeze() > 0.5).cpu().numpy()

# Print the full classification report and confusion matrix ---
print("\n📊 Overall IDS Performance on Hybrid Test Set (Benign + Adversarial Attacks):")
print("\nClassification Report:")
print(classification_report(y_test_hybrid_true, hybrid_preds_labels, target_names=['Benign', 'Attack']))

print("Confusion Matrix:")
cm = confusion_matrix(y_test_hybrid_true, hybrid_preds_labels)

# Plot Confusion Matrix
plt.figure(figsize=(4,4))
sns.heatmap(cm, annot=True, fmt='d', cmap='Blues', xticklabels=['Normal', 'Attack'], yticklabels=['Normal', 'Attack'])
plt.xlabel('Predicted Label')
plt.ylabel('True Label')
plt.title('IDS Performance on IDSGAN Adversarial Attacks')
plt.show()

📊 IDSGAN Evasion Results:
Detection Rate on Original Attacks: 98.08%
Detection Rate on IDSGAN Adversarial Attacks: 0.00%

📊 Overall IDS Performance on Hybrid Test Set (Benign + Adversarial Attacks):

Classification Report:
              precision    recall  f1-score   support

      Benign       0.85      1.00      0.92    379063
      Attack       0.00      0.00      0.00     67299

    accuracy                           0.85    446362
   macro avg       0.42      0.50      0.46    446362
weighted avg       0.72      0.85      0.78    446362

Confusion Matrix:

Analysis of the Results:

The results demonstrate a highly successful evasion attack, rendering the target IDS ineffective against the generated threats.

• Complete Evasion: The IDS’s detection rate on malicious traffic plummeted from 97.85% on original attacks to 0.00% on the adversarial samples.

• Catastrophic Failure: The confusion matrix confirms this. All 67,299 adversarial attacks were misclassified as benign traffic (False Negatives), with 0 correctly identified as attacks (True Positives).

• Targeted Attack: The model’s ability to correctly identify benign traffic remained largely intact, highlighting the specific and targeted nature of the evasion.

However, such a perfect (0%) detection rate is suspicious and might indicate a flaw. This “flaw” is less about the GAN’s mathematical success and more about the practical applicability of the attack. There are two likely root causes:

1. The target IDS is brittle: As a supervised model, it is likely easy to fool with out-of-distribution (OOD) samples that it has never seen during training.

2. The attacks are implausible: The adversarial samples may violate real-world domain constraints, making them physically impossible to deploy despite fooling the model.

Step 3.5: Visualization of IDSGAN Evasion

To understand how IDSGAN modified the attack samples, we can use Principal Component Analysis (PCA) to reduce the high-dimensional feature space to just two dimensions. This allows us to plot the original and adversarial samples and see if the generator has learned to shift the attack data into a new cluster to achieve evasion.

# Visualize the feature shifts on the adversarial samples using the GAN adversarial samples with PCA

# Define PCA with 2 components
pca = PCA(n_components=2)
# Combine original malicious and adversarial samples for PCA fitting
combined_samples = np.vstack([X_test_malicious_np, adv_samples_idsgan])
reduced_samples = pca.fit_transform(combined_samples)

# Separate the reduced data back into original and adversarial
num_original = len(X_test_malicious_np)
reduced_original = reduced_samples[:num_original]
reduced_adversarial = reduced_samples[num_original:]

# Plot the results
plt.figure(figsize=(10, 7))
plt.scatter(reduced_original[:, 0], reduced_original[:, 1], label='Original Attacks', alpha=0.5, s=10)
plt.scatter(reduced_adversarial[:, 0], reduced_adversarial[:, 1], label='Adversarial (IDSGAN)', alpha=0.5, s=10, c='red')
plt.title('PCA of Original vs. IDSGAN Adversarial Attacks')
plt.xlabel('Principal Component 1')
plt.ylabel('Principal Component 2')
plt.legend()
plt.grid(True)
plt.show()

Analysis of the Results:

The plot reveals two likely root causes for the perfect evasion:

1. The Target IDS is Brittle (Out-of-Distribution Attack): The original attacks (blue) are widely distributed. In contrast, the adversarial attacks (red) are clustered into a small, tight group far away from this distribution. This visually confirms the GAN is not making subtle changes but is pushing samples into a completely new region of the feature space. The IDS was never trained on such out-of-distribution (OOD) samples, hence its failure.

2. The Attacks are Likely Implausible: The fact that the generator maps all diverse original attacks into one tiny cluster is highly suspicious. This suggests the generator found a simple, universal “trick” to fool the IDS, likely by pushing a few mutable features to extreme or unrealistic values. This raises serious questions about whether these attacks are physically possible to deploy in a real network.

In conclusion, the IDSGAN’s success comes from exploiting the IDS’s vulnerability to OOD samples, and the nature of the generated samples makes their real-world plausibility questionable.

Step 3.6: Enforce Domain Constraints

To improve the plausibility of our attack, we will now enforce domain constraints on the generated samples. As described in the theory section, our strategy is to clip the values of the generated mutable features to ensure they fall within the range of values seen in the original training data.

The process involves three steps, implemented in the code below:

1. Define Valid Ranges: We first calculate the minimum and maximum value for each feature using the original malicious training data. This establishes a “plausible range” for what a real attack feature should look like.

2. Create a Constraint Function: We define a helper function, apply_domain_constraints, that takes the raw output from the generator and performs two actions:

   • Masking: It re-applies the mask to ensure immutable features remain unchanged.

   • Clipping: It uses torch.max and torch.min to force any generated feature value that is too low or too high back into the valid range.

3. Generate New Samples: Finally, we use the trained generator and our new constraint function to create a new, more plausible set of adversarial samples.

# Compute per-feature valid ranges based on attack samples
# we want the generator to stay inside realistic attack ranges

# Compute min/max per feature
feature_mins = X_train_malicious.min(axis=0)
feature_maxs = X_train_malicious.max(axis=0)

# Convert to PyTorch tensors
feature_mins_t = torch.tensor(feature_mins, dtype=torch.float32, device=device)
feature_maxs_t = torch.tensor(feature_maxs, dtype=torch.float32, device=device)

# Function: Apply mask + clipping (domain constraints)
def apply_domain_constraints(raw_adv, mask, mins, maxs):
    """
    raw_adv  : raw adversarial output (batch x features)
    mask     : 1 = mutable, 0 = immutable features
    mins/maxs: valid value ranges for each feature
    """
    # Masking — keep immutable features unchanged
    masked = raw_adv * mask

    # Clipping — enforce valid attack-domain ranges
    clipped = torch.max(masked, mins)
    clipped = torch.min(clipped, maxs)

    return clipped


# Generate constrained adversarial samples for test malicious set
generator_idsgan.eval()

# Select only malicious test samples
X_test_mal_np = X_test[y_test == 1]
X_test_mal = torch.tensor(X_test_mal_np, dtype=torch.float32).to(device)


with torch.no_grad():
    # Generate raw adversarial samples
    raw_adv = generator_idsgan(X_test_mal, mask_tensor)

    # Apply domain constraints
    adv_constrained = apply_domain_constraints(
        raw_adv,
        mask_tensor,
        feature_mins_t,
        feature_maxs_t
    )

    # Convert back to numpy for further evaluation
    adv_constrained_np = adv_constrained.cpu().numpy()

print("Domain constraints applied to adversarial samples.")

Domain constraints applied to adversarial samples.

Step 3.7: Compare feature shifts

To visually understand the impact of our domain constraints, we can plot histograms of a few mutable features. This allows us to compare the distribution of the original attacks, the raw adversarial attacks, and our new, constrained adversarial attacks.

# Choose a few mutable features for visualization
mutable_indices = np.where(mask == 1)[0]
vis_idx = mutable_indices[:6]   # first 6 mutable features
vis_features = [feature_names[i] for i in vis_idx]

# Plot histograms comparing original, raw adversarial, and constrained adversarial samples
plt.figure(figsize=(14, 10))

for i, f_idx in enumerate(vis_idx):
    plt.subplot(3, 2, i+1)
    plt.hist(
        X_test_mal_np[:, f_idx],
        bins=50,
        alpha=0.5,
        label="Original Attacks"
    )
    plt.hist(
        adv_samples_idsgan[:, f_idx],
        bins=50,
        alpha=0.5,
        label="IDSGAN (raw)"
    )
    plt.hist(
        adv_constrained_np[:, f_idx],
        bins=50,
        alpha=0.5,
        label="IDSGAN (constrained)"
    )
    plt.title(f"Feature: {feature_names[f_idx]}")

    plt.legend()

plt.tight_layout()
plt.show()

Analysis of the Histograms:

These plots illustrate the problem with the unconstrained attack and the effect of constraints:

1. Raw Attacks (Orange): For many features (like "Flow Duration" and "Total Fwd Packets"), the raw adversarial samples have collapsed into a single, tall spike at an extreme value (e.g., -1.0). This is the visual proof of the out-of-distribution (OOD) attack we suspected earlier. The GAN found that simply pushing these features to an unrealistic minimum was the easiest way to fool the IDS.

2. Constrained Attacks (Green): The clipping mechanism has successfully corrected this. The green distributions, representing our constrained attacks, are now forced back into the valid range of the original attacks. The spikes are no longer at extreme, out-of-distribution values but are instead “clipped” to the minimum or maximum edge of the plausible feature space.

This confirms that our domain constraints are working as intended, making the adversarial samples significantly more plausible. The crucial question now is whether these more realistic attacks can still evade the IDS.

Step 3.8: Evaluate IDS performance on domain-constrained adversarial samples

We will now pass our adv_constrained samples to the target IDS and compare the resulting detection rate against our previous benchmarks: the original attacks and the raw, unconstrained adversarial attacks.

# Evaluate IDS detection rate on constrained adversarial samples
with torch.no_grad():
    # Get model predictions on constrained adversarial samples
    preds_constrained_probs = target_ids_pytorch(adv_constrained)
    # Convert probabilities to binary predictions
    preds_constrained = (preds_constrained_probs.squeeze() > 0.5).cpu().numpy()

# Calculate detection rates
det_rate_constrained = np.mean(preds_constrained == 1)

print("=== IDS Detection Rates ===")
print(f"Original attacks detection:                 {det_rate_orig:.2%}")
print(f"IDSGAN (unconstrained) detection:           {det_rate_adv_idsgan:.2%}")
print(f"IDSGAN (domain-constrained) detection:      {det_rate_constrained:.2%}")

=== IDS Detection Rates ===
Original attacks detection:                 98.08%
IDSGAN (unconstrained) detection:           0.00%
IDSGAN (domain-constrained) detection:      0.00%

Notes:

Even after clipping the adversarial samples to the applicable range, the detection rate remained at a perfect 0.00%.

This proves the GAN successfully learned to exploit subtle vulnerabilities within the target IDS’s decision boundary while staying inside the valid data domain. This demonstrates a severe and practical security risk for the target model.

Step 3.9: Visualization of Constrained IDSGAN Evasion

Finally, let’s visualize the constrained adversarial samples using PCA. This will help us understand how they still manage to achieve a 100% evasion rate even after being forced into the valid data domain.

# Visualize the feature shifts on the domain-constrained adversarial samples using PCA
pca_con = PCA(n_components=2)

# Combine original malicious and constrained adversarial samples for PCA fitting
combined_samples_constrained = np.vstack([X_test_mal_np, adv_constrained_np])
reduced_constrained = pca_con.fit_transform(combined_samples_constrained)

reduced_original_con = reduced_constrained[:num_original]
reduced_adv_con = reduced_constrained[num_original:]

# Plot the results
plt.figure(figsize=(10, 7))
plt.scatter(
    reduced_original_con[:, 0], reduced_original_con[:, 1],
    label='Original Attacks', alpha=0.5, s=10
)
plt.scatter(
    reduced_adv_con[:, 0], reduced_adv_con[:, 1],
    label='Adversarial (Domain-Constrained)', alpha=0.5, s=10, c='red'
)

plt.title('PCA: Original vs Domain-Constrained IDSGAN Attacks')
plt.xlabel('Principal Component 1')
plt.ylabel('Principal Component 2')
plt.legend()
plt.grid(True)
plt.show()

Notes:

The constrained adversarial attacks (red) are tightly clustered. This confirms that the GAN has found a specific, highly effective “blind spot” that fools the IDS.

4. Train and Evaluate AdvGAN

Finally, we will implement our second (white-box) attack strategy using AdvGAN. Unlike IDSGAN, which generates an entirely new sample, AdvGAN’s generator learns to produce a subtle perturbation vector (Δx) that is added to the original malicious sample.

Because our target IDS is already a PyTorch model (KDDNet), we can perform a white-box attack. This means the generator can get direct gradient feedback from the target IDS, which typically makes the attack more efficient and effective.

4.1 Defining the AdvGAN Models

We need to define a new generator that outputs a perturbation and a standard discriminator to enforce realism.

• AdvGAN_Generator: This generator takes a malicious sample x as input and outputs a perturbation Δx. The final adversarial sample is x + Δx. We multiply the perturbation by a small constant (e.g., 0.1) to keep the changes subtle. The mask ensures we only modify mutable features.

• AdvGAN_Discriminator: This is a standard GAN discriminator. Its job is to distinguish between real, benign traffic and the generator’s “fake” adversarial traffic. This forces the generator to create perturbations that are realistic and don’t just look like random noise.

# Define AdvGAN Models
class AdvGAN_Generator(nn.Module):
    """
    AdvGAN Generator that learns to produce a small perturbation.
    """
    def __init__(self, input_dim):
        super().__init__()
        self.model = nn.Sequential(
            nn.Linear(input_dim, 128), nn.ReLU(),
            nn.Linear(128, 128), nn.ReLU(),
            nn.Linear(128, input_dim), nn.Tanh() # Tanh outputs values in [-1, 1]
        )

    def forward(self, x, mask):
        # Generate a perturbation and scale it to keep it small
        perturbation = self.model(x) * 0.1
        # Apply the mask to the perturbation and add to the original input
        return x + perturbation * mask

class AdvGAN_Discriminator(nn.Module):
    """
    Standard discriminator to distinguish real (benign) vs fake (adversarial).
    """
    def __init__(self, input_dim):
        super().__init__()
        self.model = nn.Sequential(
            nn.Linear(input_dim, 128), nn.ReLU(),
            nn.Linear(128, 1), nn.Sigmoid()
        )
    def forward(self, x):
        return self.model(x)

4.2 Training the AdvGAN Framework

The training process for AdvGAN is more complex, as the generator must satisfy three competing objectives, which are combined into a single loss function:

• (L_adv) Adversarial Loss: Fool the target IDS.

• (L_GAN) GAN Loss: Fool the discriminator to ensure realism.

• (L_pert) Perturbation Loss: Keep the changes small and subtle.

We use lambda hyperparameters to balance the importance of these different losses.

# Train AdvGAN

# Initialize models, placing them on the selected device
generator_advgan = AdvGAN_Generator(input_dim).to(device)
discriminator_advgan = AdvGAN_Discriminator(input_dim).to(device)

# Define the three distinct loss functions
loss_adv = nn.BCELoss()   # For fooling the target IDS
loss_gan = nn.BCELoss()   # For the realism game with the discriminator
loss_pert = nn.MSELoss()  # To keep the perturbation small

# Initialize optimizers
opt_g_advgan = optim.Adam(generator_advgan.parameters(), lr=0.001)
opt_d_advgan = optim.Adam(discriminator_advgan.parameters(), lr=0.001)

# Hyperparameters to weigh the different generator losses
lambda_adv = 1.0
lambda_pert = 0.1

print("Training AdvGAN...")
for epoch in range(10): # Using fewer epochs for demonstration
    for (malicious_batch,), (benign_batch,) in zip(malicious_loader, benign_loader):
        malicious_batch, benign_batch = malicious_batch.to(device), benign_batch.to(device)

        # Train Discriminator
        # The discriminator's job is to learn the difference between
        # real benign traffic and the generator's adversarial traffic.
        opt_d_advgan.zero_grad()

        # Train with real (benign) samples, labeled as 1 (real)
        d_real_preds = discriminator_advgan(benign_batch)
        d_loss_real = loss_gan(d_real_preds, torch.ones_like(d_real_preds))

        # Train with fake (adversarial) samples, labeled as 0 (fake)
        adv_samples = generator_advgan(malicious_batch, mask_tensor).detach()
        d_fake_preds = discriminator_advgan(adv_samples)
        d_loss_fake = loss_gan(d_fake_preds, torch.zeros_like(d_fake_preds))

        d_loss = (d_loss_real + d_loss_fake) / 2
        d_loss.backward()
        opt_d_advgan.step()

        # Train Generator
        # The generator must satisfy three goals simultaneously.
        opt_g_advgan.zero_grad()
        adv_samples_for_g = generator_advgan(malicious_batch, mask_tensor)

        # Goal 1: Fool the target IDS (Adversarial Loss)
        # We get feedback directly from our white-box PyTorch IDS.
        target_ids_pytorch.eval() # Target model is only for inference
        target_preds = target_ids_pytorch(adv_samples_for_g)
        g_loss_adv = loss_adv(target_preds, torch.zeros_like(target_preds)) # We want the IDS to predict 0 (Benign)

        # Goal 2: Fool the discriminator (GAN/Realism Loss)
        # We want the discriminator to think our samples are real (label 1).
        disc_preds = discriminator_advgan(adv_samples_for_g)
        g_loss_gan = loss_gan(disc_preds, torch.ones_like(disc_preds))

        # Goal 3: Keep the perturbation small (Perturbation Loss)
        # We penalize large differences between the original and adversarial sample.
        g_loss_pert = loss_pert(adv_samples_for_g, malicious_batch)

        # Combine the three losses into a single objective for the generator
        g_loss = g_loss_gan + lambda_adv * g_loss_adv + lambda_pert * g_loss_pert
        g_loss.backward()
        opt_g_advgan.step()

    print(f"Epoch {epoch+1}: D Loss={d_loss.item():.4f}, G Loss={g_loss.item():.4f}")

Training AdvGAN...
Epoch 1: D Loss=0.1226, G Loss=9.3367
Epoch 2: D Loss=0.0980, G Loss=13.1457
Epoch 3: D Loss=0.0383, G Loss=16.2749
Epoch 4: D Loss=0.0299, G Loss=14.9609
Epoch 5: D Loss=0.0148, G Loss=11.7451
Epoch 6: D Loss=0.0506, G Loss=17.9981
Epoch 7: D Loss=0.0023, G Loss=22.3924
Epoch 8: D Loss=0.0111, G Loss=20.1171
Epoch 9: D Loss=0.0039, G Loss=18.0157
Epoch 10: D Loss=0.0014, G Loss=14.6443

4.3 Evaluating AdvGAN’s Evasion Effectiveness

Finally, we use the trained AdvGAN generator to craft adversarial examples from our test set of malicious traffic and measure how effectively they evade the target IDS.

# Evaluate AdvGAN Evasion Results
print("📊 AdvGAN Evasion Results:")
generator_advgan.eval() # Set the generator to evaluation mode

X_test_malicious = torch.tensor(X_test[y_test == 1], dtype=torch.float32).to(device)


# Generate adversarial samples for the malicious part of the test set
with torch.no_grad():
    adv_samples_advgan_tensor = generator_advgan(X_test_malicious, mask_tensor)

    # Get the final predictions from our target IDS
    adv_preds_advgan_probs = target_ids_pytorch(adv_samples_advgan_tensor)
    adv_preds_advgan = (adv_preds_advgan_probs.squeeze() > 0.5).cpu().numpy()

# Calculate the detection rate on the new adversarial samples
det_rate_adv_advgan = np.mean(adv_preds_advgan == 1)

print(f"Detection Rate on Original Attacks: {det_rate_orig:.2%}")
print(f"Detection Rate on AdvGAN Adversarial Attacks: {det_rate_adv_advgan:.2%}")


# --- Create a new, hybrid test set ---
# 1. Get the original benign samples from the test set
X_test_benign_np = X_test[y_test == 0]
adv_samples_advgan = adv_samples_advgan_tensor.cpu().numpy()

# 2. Stack the benign samples and the new adversarial attack samples
X_test_hybrid = np.vstack([X_test_benign_np, adv_samples_advgan])

# 3. Create the corresponding true labels for this hybrid set
# The first part is benign (0), the second part is attack (1)
y_test_hybrid_true = np.concatenate([
    np.zeros(len(X_test_benign_np)),
    np.ones(len(adv_samples_advgan))
])

# --- Make predictions on the new hybrid test set ---
target_ids_pytorch.eval()
with torch.no_grad():
    X_test_hybrid_tensor = torch.tensor(X_test_hybrid, dtype=torch.float32).to(device)
    hybrid_preds_probs = target_ids_pytorch(X_test_hybrid_tensor)
    hybrid_preds_labels = (hybrid_preds_probs.squeeze() > 0.5).cpu().numpy()

# --- Print the full classification report and confusion matrix ---
print("📊 Overall IDS Performance on Hybrid Test Set (Benign + AdvGAN Attacks):")
print("Classification Report:")
print(classification_report(y_test_hybrid_true, hybrid_preds_labels, target_names=['Benign', 'Attack']))

print("Confusion Matrix:")
cm = confusion_matrix(y_test_hybrid_true, hybrid_preds_labels)

# --- Plot Confusion Matrix using Seaborn ---
plt.figure(figsize=(6,6))
sns.heatmap(cm, annot=True, fmt='d', cmap='Blues',
            xticklabels=['Benign', 'Attack'], yticklabels=['Benign', 'Attack'],
            annot_kws={"size": 14})
plt.xlabel('Predicted Label', fontsize=12)
plt.ylabel('True Label', fontsize=12)
plt.title('IDS Performance on AdvGAN Adversarial Traffic', fontsize=14)
plt.show()

📊 AdvGAN Evasion Results:
Detection Rate on Original Attacks: 98.08%
Detection Rate on AdvGAN Adversarial Attacks: 23.78%
📊 Overall IDS Performance on Hybrid Test Set (Benign + AdvGAN Attacks):
Classification Report:
              precision    recall  f1-score   support

      Benign       0.88      1.00      0.93    379063
      Attack       0.90      0.24      0.38     67299

    accuracy                           0.88    446362
   macro avg       0.89      0.62      0.66    446362
weighted avg       0.88      0.88      0.85    446362

Confusion Matrix:

Notes:

The AdvGAN attack was highly effective, significantly degrading the IDS’s performance by creating subtle, evasive traffic. Unlike the all-or-nothing result from IDSGAN, this outcome represents a more realistic and nuanced attack scenario.

3.5 Visualization of AdvGAN Evasion

To understand how AdvGAN modified the attack samples, we can use Principal Component Analysis (PCA) to reduce the high-dimensional feature space to just two dimensions. This allows us to plot the original and adversarial samples and see if the generator has learned to shift the attack data into a new cluster to achieve evasion.

# 1. Get the original malicious samples as a NumPy array
X_test_malicious_np = X_test[y_test == 1]

# 2. Get the adversarial samples as a NumPy array
adv_samples_advgan = adv_samples_advgan_tensor.cpu().numpy()

# apply PCA
pca_advgan = PCA(n_components=2)
# Combine original malicious and new adversarial samples for PCA fitting
combined_samples_advgan = np.vstack([X_test_malicious_np, adv_samples_advgan])
reduced_samples_advgan = pca_advgan.fit_transform(combined_samples_advgan)

# Separate the reduced data back into original and adversarial
num_original = len(X_test_malicious_np)
reduced_original = reduced_samples_advgan[:num_original]
reduced_adversarial = reduced_samples_advgan[num_original:]

# Plot the results
plt.figure(figsize=(10, 7))
plt.scatter(reduced_original[:, 0], reduced_original[:, 1], label='Original Attacks', alpha=0.5, s=10)
plt.scatter(reduced_adversarial[:, 0], reduced_adversarial[:, 1], label='Adversarial (AdvGAN)', alpha=0.5, s=10, c='red')
plt.title('PCA of Original vs. AdvGAN Adversarial Attacks')
plt.xlabel('Principal Component 1')
plt.ylabel('Principal Component 2')
plt.legend()
plt.grid(True)
plt.show()

Analysis of the AdvGAN PCA Visualization:

1. Subtle Perturbations, Not a New Cluster: Instead of mapping all attacks to a new, distant “blind spot,” the AdvGAN samples (red) closely shadow the distribution of the original attacks (blue). Each red dot is a slightly modified version of a corresponding blue dot. This is the visual definition of a successful perturbation attack: the generator has learned to apply a small, calculated “nudge” to each sample just enough to fool the classifier.

2. The Impact of the Perturbation Loss (L_pert): This subtlety is a direct consequence of the generator’s training objective. The Perturbation Loss (L_pert) explicitly penalizes large changes, forcing the generator to find the smallest possible modification to achieve evasion. Because the attack is white-box, the generator has access to the IDS’s gradients and knows the most efficient direction to push each sample, so it doesn’t need to make large, unrealistic changes.

This visualization perfectly illustrates the difference between a blackbox brute-force OOD attack (IDSGAN) and a sophisticated, white-box surgical perturbation attack (AdvGAN).

Exercises – GAN-Based Evasion

Exercise 1: Attack Success vs. Perturbation Strength

Adjust the generator’s learning rate or noise level and observe how it affects evasion success.

Exercise 2: Compare Models

Train alternative IDS classifiers (Random Forest, Isolation Forest, SVM) and compare adversarial robustness using the IDSGAN.

Conclusion

In this tutorial, we replicated the core idea from Zolbayar et al. (2021):

> GANs can be used to craft adversarial network traffic capable of evading ML-based IDS.

By training a generator to produce constrained adversarial features, we demonstrated:

• IDS models are vulnerable to subtle perturbations.

• Adversarial samples can significantly reduce detection rates.

• Defensive retraining and ensemble methods are necessary to mitigate such attacks.

This highlights the arms race between attackers and defenders in the ML-driven cybersecurity domain.

---

If you found this tutorial helpful, please ⭐ star our repository to show your support.

For any questions, typos, or bugs, kindly open an issue on GitHub — we appreciate your feedback!

---
